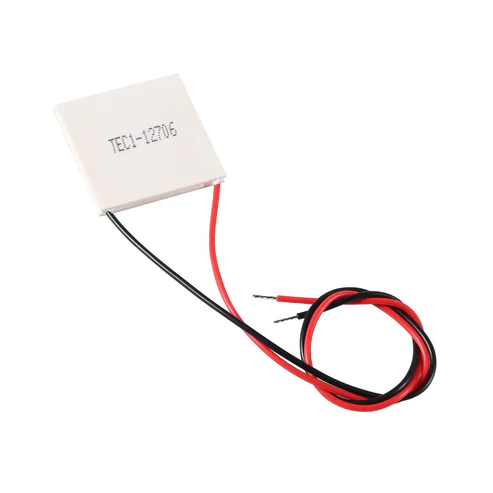

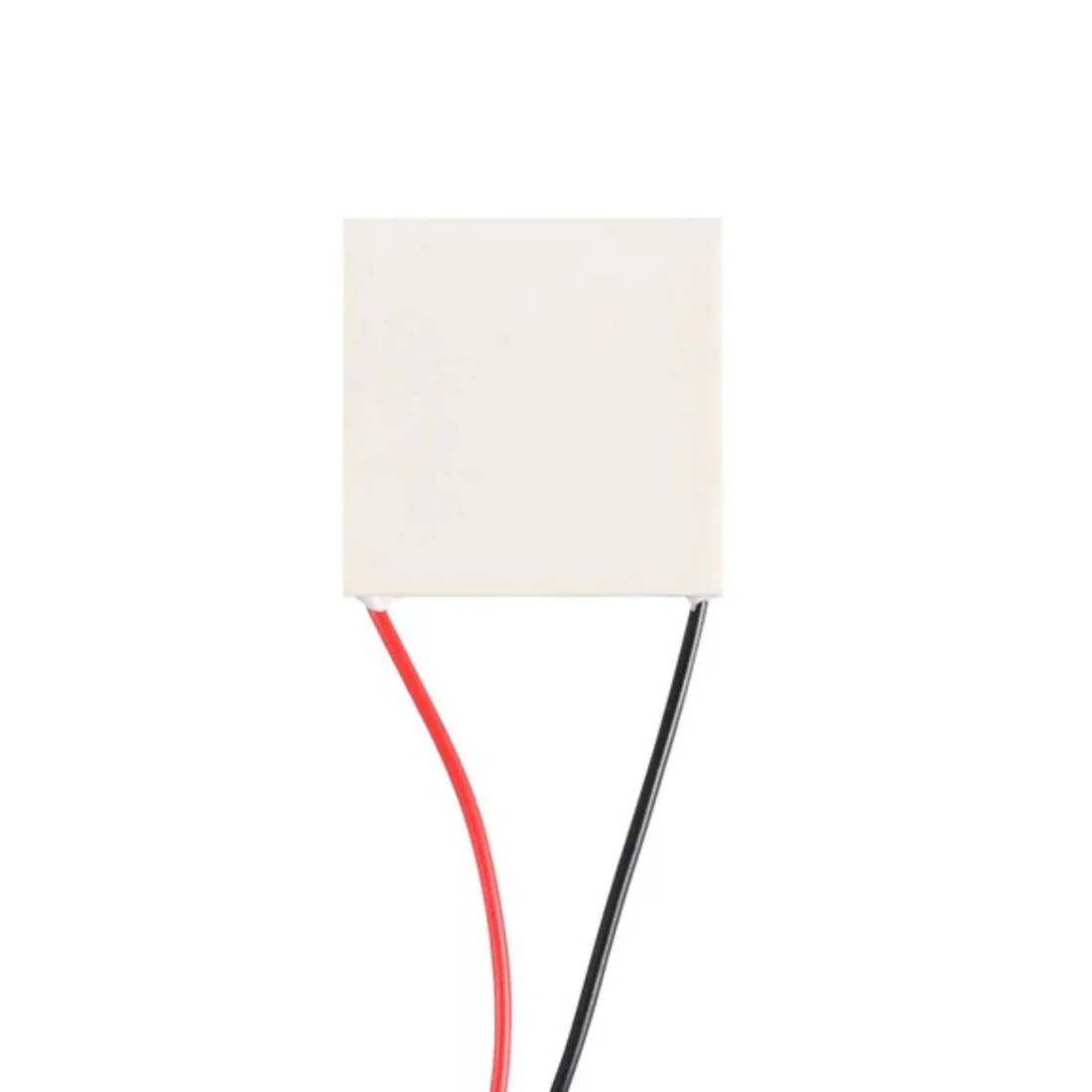

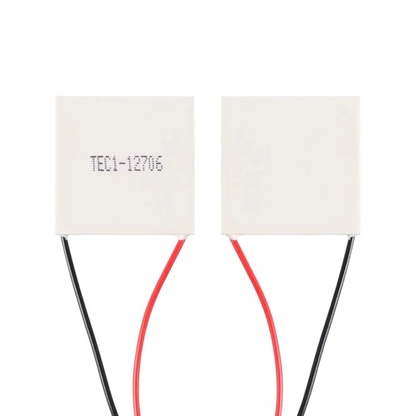

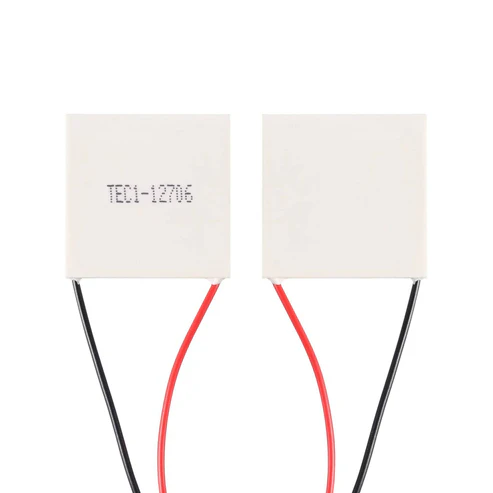

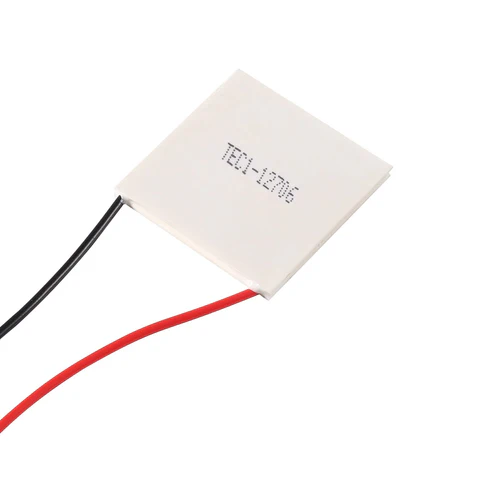

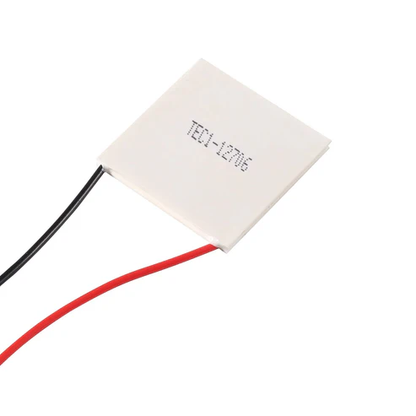

TEC1-12706 12V 6A Peltier Thermoelectric Cooler | 40x40mm High-Performance Cooling Module

The TEC1-12706 is a high-performance thermoelectric cooler (Peltier module) designed for efficient cooling applications. It operates on the Peltier effect, transferring heat from one side to the other when powered, making it ideal for CPU cooling, mini refrigerators, beverage coolers, and DIY electronics projects.

Specifications

• Model: TEC1-12706
• Voltage: 12V DC
• Current: 6A
• Power Consumption: 72W
• Size: 40mm × 40mm × 3.8mm
• Cooling Capacity: Up to 60°C temperature difference between hot and cold sides
• Material: Ceramic plates with semiconductor elements
• Wire Length: Approx. 30cm

Features

• Compact and lightweight design
• High cooling efficiency
• Solid-state operation, no moving parts
• Low noise and maintenance-free
• Durable ceramic construction for better thermal conductivity
• Easy to install and use

Operating Tips

• Ensure proper heat dissipation on the hot side using a heatsink and fan for optimal performance
• Avoid running the module without a heatsink, as it can overheat and get damaged
• Use a stable 12V 6A power supply to maintain efficiency
• Keep moisture away to prevent damage to the semiconductor elements
• Do not apply excessive mechanical stress while mounting

Package Included

• 1 × TEC1-12706 12V 6A Peltier Thermoelectric Cooler Module
