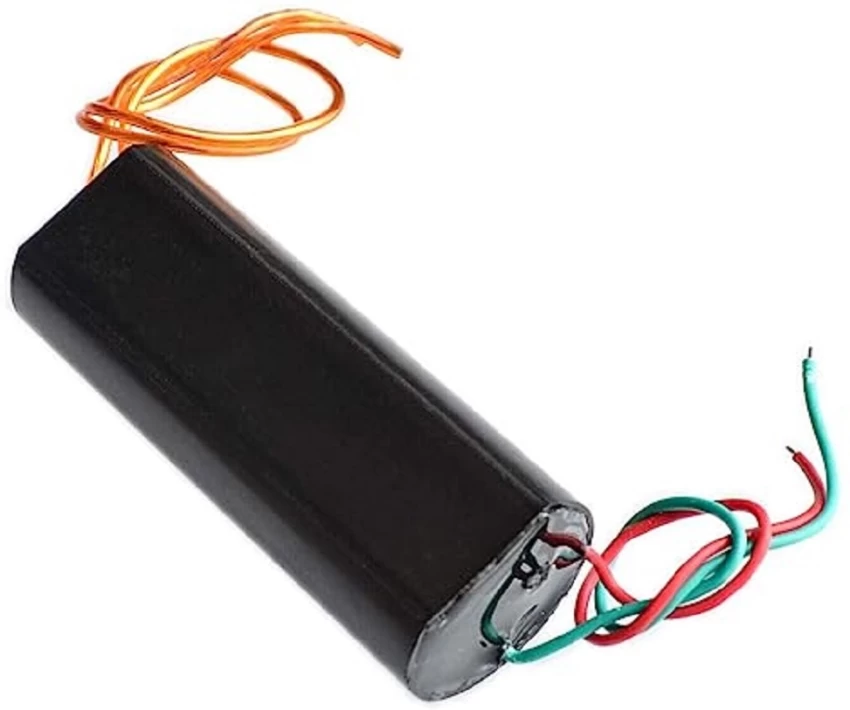

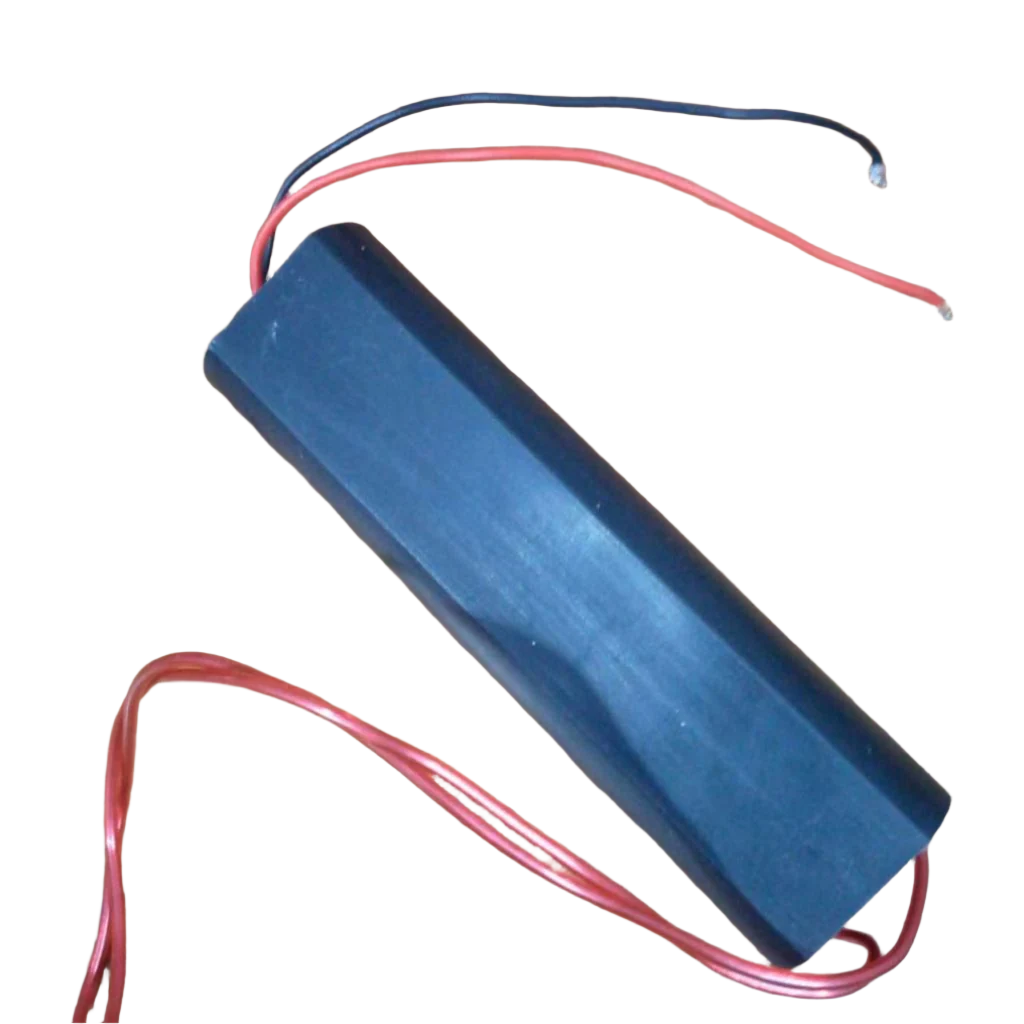

DC 3.7V-7.4V to 1000KV High Voltage Generator Transformer Boost Inverter

DC 3.7V-7.4V to 1000KV High Voltage Generator Transformer Boost Inverter Module

High-Performance Voltage Boosting Technology

This DC to High Voltage Generator Module is designed to efficiently step up a low DC voltage (3.7V–7.4V) to an extremely high output voltage of up to 1000KV. Using a high-frequency pulse circuit and an advanced boost inverter, this module provides a stable, high-voltage arc output, making it ideal for various high-voltage applications, experiments, and DIY projects.

Key Features & Benefits

• Ultra-High Voltage Output – Converts low input voltage (3.7V-7.4V) into a high-voltage output of up to 1000KV, ideal for scientific experiments, ignition systems, and plasma arcs.

• Advanced Boost Inverter Circuit – Built with a high-efficiency transformer and electronic circuitry to ensure stable voltage boosting with low energy consumption.

• Wide Input Voltage Compatibility – Can be powered using:

  • 3.7V lithium batteries (such as a single 18650 cell)
  • 6V–7.4V battery packs (such as a 2S Li-ion battery pack)
  • DC power adapters in the 6V-7.4V range

• Compact & Lightweight Design – Small form factor allows for easy integration into DIY projects, research experiments, and electronic circuits.

• Multiple Applications – Can be used in various high-voltage applications, including:

  • Scientific Research & Experiments – Explore high-voltage behavior, electrical breakdown, and plasma arcs.
  • High-Voltage Ignition Systems – Suitable for electronic igniters, gas ignition, and coil-based ignition experiments.
  • Tesla Coil & Plasma Arc Generation – Ideal for plasma-based scientific and hobbyist projects.
  • DIY Electronics & Engineering Projects – Perfect for high-voltage enthusiasts working on custom circuits and electrical discharges.

• Durable Build & Reliable Performance – Designed with high-quality insulated components for long-lasting operation and efficient power conversion.

• Easy to Use & Connect – Simple two-wire input connection makes it beginner-friendly while allowing advanced users to integrate it with microcontrollers, sensors, or circuits.

Safety & Precautions

This module produces an extremely high voltage that can be dangerous. Handle with caution and follow these safety guidelines:

• Do not touch the output terminals while the module is operating.
• Keep away from flammable materials and operate in a well-ventilated area.
• Use insulated tools and protective gear when handling or testing the device.
• Not suitable for children or inexperienced users. Should only be used by individuals with knowledge of high-voltage systems.
• Do not operate for extended periods continuously, as high-voltage arcs can generate heat and reduce the lifespan of the module.

Package Includes

• 1 × High Voltage Generator Boost Inverter Module

This DC 3.7V-7.4V to 1000KV Boost Converter is an excellent tool for electronics enthusiasts, researchers, and engineers who want to explore the fascinating world of high-voltage applications. Whether you’re experimenting with electrical discharges, plasma arcs, or ignition systems, this module is a powerful and efficient solution for your needs.
